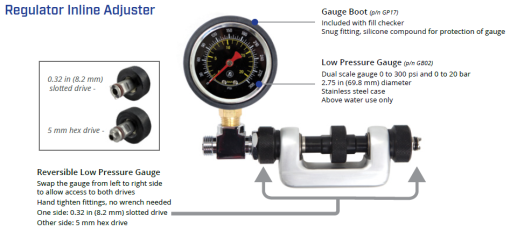

Regulator inline Adjuster + hex and flat

Adjust the low pressure orifice while the second stage is pressurized

Two drives allowing compatibility with nearly all second stages

Reversible, one end with with a 0.32 in (8.2 mm) slotted drive and the other with a tapered 5 mm hex drive

Low pressure gauge included for display of the intermediate pressure

Finger tight spin-on attachment for quick service

Components:

Low Pressure Gauge (p/n GB02)

Dual scale gauge 0 to 300 psi and 0 to 20 bar

2.75 in (69.8 mm) diameter

Stainless steel case

Above water use only

Gauge Boot (p/n GP17)

Included with fill checker

Snug fitting, silicone compound for protection of gauge

Reversible Low Pressure Gauge

Swap the gauge from left to right side to allow access to both drives

Hand tighten fittings, no wrench needed

One side: 0.32 in (8.2 mm) slotted drive

Other side: 5 mm hex drive
